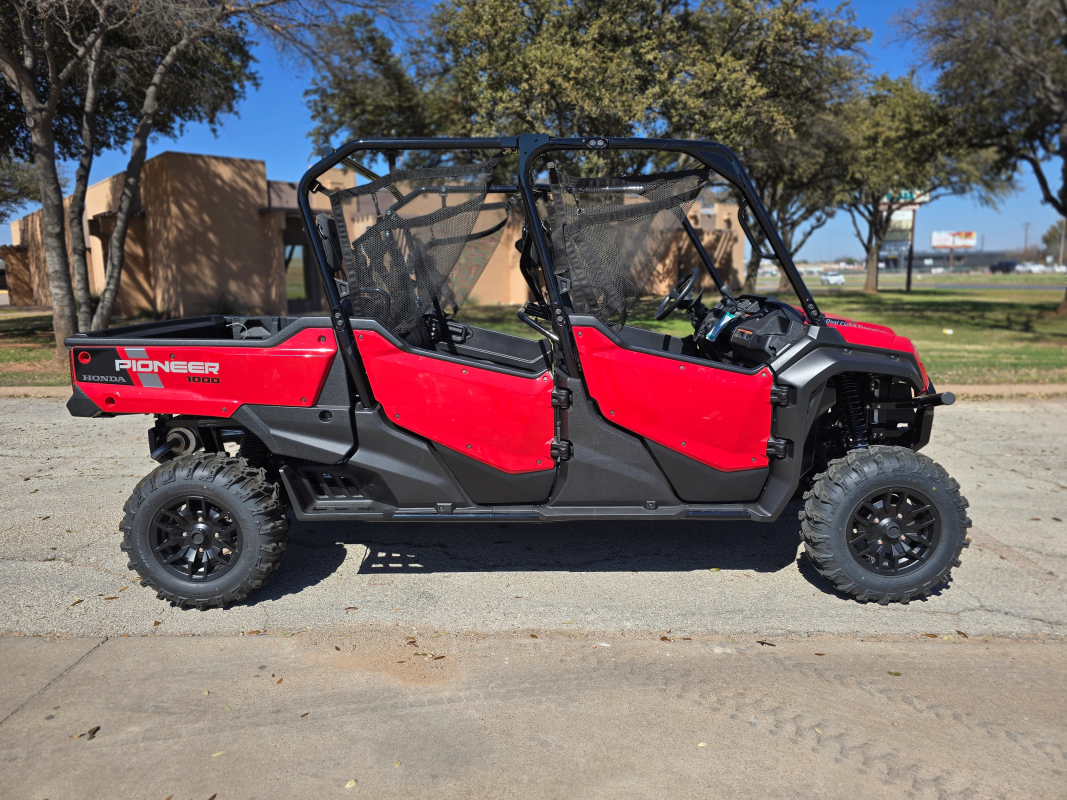

‹ Home › Inventory › 2025 Honda Pioneer 1000-6 Deluxe Crew

Big on performance. Big on features. Big on capacity. Big on comfort. With room for six in first-class accommodations, while its spacious tilt bed, a 2500-pound towing capacity, and Honda's exclusive automatic DCT transmission fill out the features list. Available in TrueTimber® Atera Camo.

Specifications

Engine

add remove
- Engine Type:

  Parallel Twin
- Engine:

  Standard
- Cylinders:

  2
- Engine Stroke:

  4-Stroke
- Cooling:

  Liquid
- Valves:

  8
- Valves Per Cylinder:

  4
- Valve Configuration:

  OHV
- Bore (mm):

  92
- Bore (in):

  3.62
- Stroke (mm):

  75.1
- Stroke (in):

  2.96
- Displacement (cc):

  999
- Displacement (ci):

  60.9
- Starter:

  Electric
- Fuel Type:

  Gas
- Fuel Requirements:

  Regular
- Carburetion:

  Standard
- Fuel Injector:

  Yes
- Fuel Injector Size (mm):

  44
- Carburetor:

  No
- Carburetion Type:

  Fuel Injected
- Parental Controls:

  Not Available
- Snorkel Air Intake:

  Not Available
- Engine Block Heater:

  Not Available
- Speed Governor:

  No
- Other Engine:

  Not Available
- Compression Ratio:

  10:1
TRANSMISSION

add remove
- Transmission:

  Standard
- Transmission Type:

  Manual / Automatic Clutch
- Number Of Speeds:

  6
- Hi / Low Range:

  Yes
- Primary Drive (Rear Wheel):

  Shaft
- Primary Drive (Front Wheel):

  Shaft
- Reverse:

  Yes
- Adjustable Throttle:

  Not Available
- Other Transmission:

  Not Available
DRIVE LINE

add remove
- Driveline:

  Standard
- Driveline Type:

  Selectable 4X2 / 4X4
- Number Of Driveline Modes:

  4
- Rear Solid Axle:

  No
- Limited Slip Differential:

  Not Available
- Differential Lock:

  Standard
- Differential Lock Location:

  Front / Rear
- Other Drive Line:

  Not Available
TECHNICAL SPECIFICATIONS

add remove
- Dimensions:

  Standard
- Length (mm):

  3865.9
- Width (in):

  63
- Width (mm):

  1600.2
- Height (in):

  76.1
- Height (mm):

  1932.9
- Wheelbase (in):

  115.2
- Wheelbase (mm):

  2926.1
- Turning Radius (ft):

  18.7
- Ground Clearance (in):

  12.6
- Ground Clearance (mm):

  320
- Weight:

  Standard
- Towing Capacity (lbs):

  2500
- Towing Capacity (kgs):

  1134
- Capacities:

  Standard
- Fuel Capacity (gal):

  7.9
- Fuel Capacity (l):

  29.9
- Fuel Capacity Reserve (gal):

  1.7
- Fuel Capacity Reserve (l):

  6.4
- Performance:

  Standard
- Payload Capacity (lbs):

  1000
- Payload Capacity (kgs):

  453.6
- Wet Weight (lbs):

  1936
- Wet Weight (kg):

  878.2
SUSPENSION

add remove
- Front Suspension:

  Standard
- Front Suspension Type:

  Independent Double Wishbone
- Front Travel (in):

  10.5
- Front Travel (mm):

  266.7
- Rear Suspension:

  Standard
- Rear Suspension Type:

  Independent Double Wishbone
- Rear Suspension Material:

  Steel
- Rear Travel (in):

  10
- Rear Travel (mm):

  254
- Number Rear Shock Absorbers:

  2
- Rear Stabilizer Bar:

  Yes
- Air Adjustable:

  No
- Center Suspension:

  Not Available
- Front Adjustable Fork Pre-Load:

  No
- Rear Adjustable Shock / Spring Pre-Load:

  Yes
- Other Suspension:

  Not Available
WHEELS & TIRES

add remove
- Wheels:

  Standard
- Wheels Composition:

  Aluminum
- Front Tire Diameter (in):

  27
- Rear Tire Diameter (in):

  27
- Wheel Weights:

  Not Available
- Tires:

  Standard
- Front Tire Width:

  9
- Front Wheel Diameter:

  14
- Rear Tire Width:

  11
- Rear Wheel Diameter:

  14
- Front Tire (Full Spec):

  Armstrong Dirt Master: 27 x 9-14
- Rear Tire (Full Spec):

  Armstrong Dirt Master: 27 x 11-14
- Tire Chains:

  Not Available
- Spare Tire:

  Not Available
- Tire Brand:

  Armstrong
- Other Wheels & Tires:

  Not Available
BRAKES

add remove
- Brakes:

  Standard
- Front Brake Type:

  Hydraulic Disc
- Front Brake Diameter (in):

  8.3
- Front Brake Diameter (mm):

  210
- Rear Brake Type:

  Hydraulic Disc
- Rear Brake Diameter (in):

  8.3
- Rear Brake Diameter (mm):

  210
- Anti-Lock Brakes:

  Not Available
- Parking Brake:

  Standard
- Engine Braking:

  Standard
- Regenerative Braking:

  Not Available
- Regenerative Deceleration:

  Not Available
- Linked Brake System Front to Rear:

  Not Available
- Other Brakes:

  Not Available
