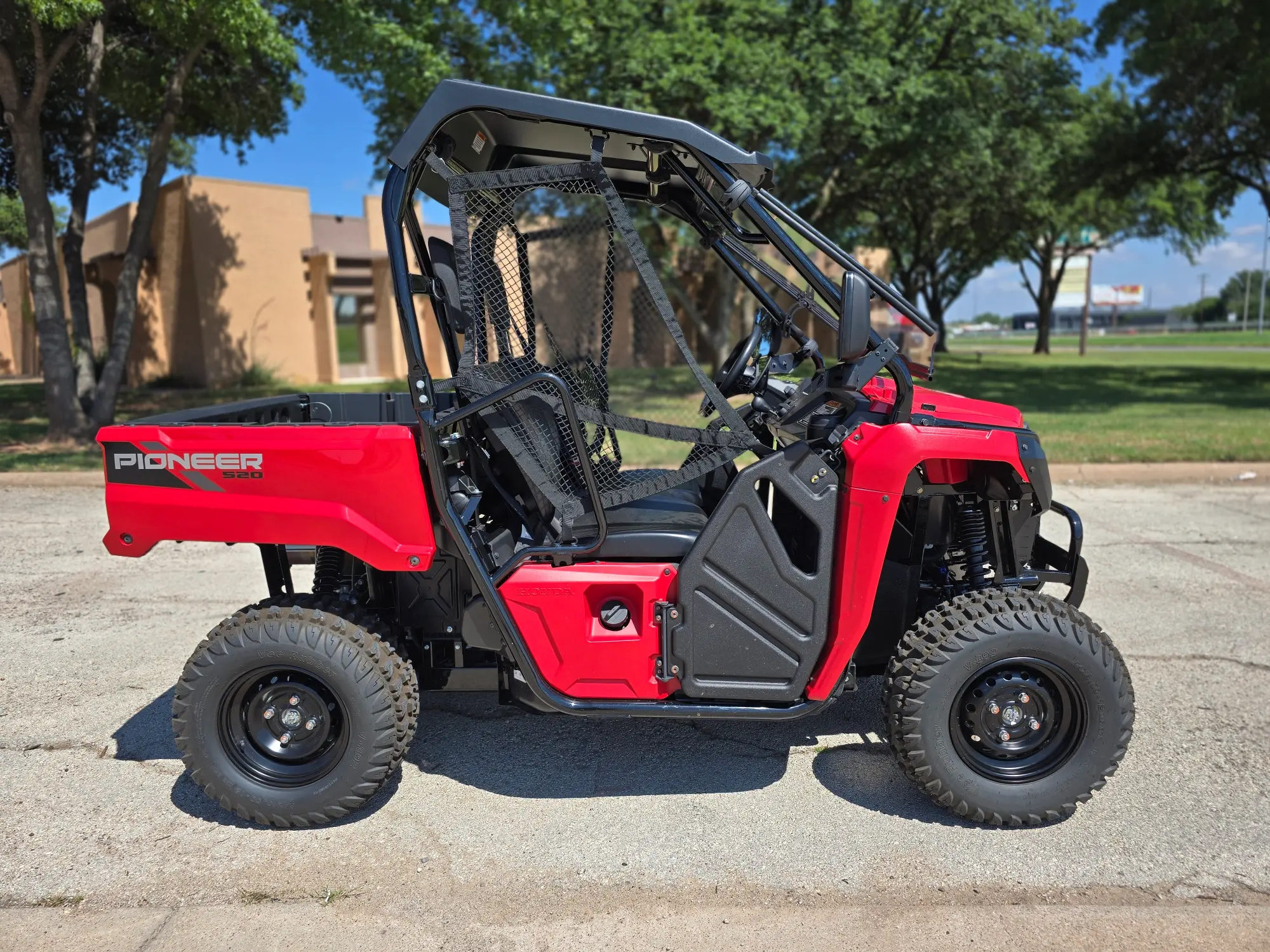

The Pioneer 520 is the Swiss Army knife of side-by-sides, combining compact agility with a mighty 518cc engine. With a 50-inch width, this mini powerhouse effortlessly navigates narrow trails, while a strut-assist tilt/dump bed, seating for two, and 1000-pound towing capacity underscore its versatility and reliability.

Specifications

Engine

add remove
- Engine Type:

  Single-Cylinder
- Engine:

  Standard
- Cylinders:

  1
- Engine Stroke:

  4-Stroke
- Cooling:

  Liquid
- Valves:

  4
- Valves Per Cylinder:

  4
- Valve Configuration:

  OHV
- Bore (mm):

  96
- Bore (in):

  3.78
- Stroke (mm):

  71.5
- Stroke (in):

  2.81
- Displacement (cc):

  518
- Displacement (ci):

  31.6
- Starter:

  Electric
- Fuel Type:

  Gas
- Fuel Requirements:

  Regular
- Carburetion:

  Standard
- Fuel Injector:

  Yes
- Fuel Injector Size (mm):

  36
- Carburetor:

  No
- Carburetion Type:

  Fuel Injected
- Parental Controls:

  Not Available
- Snorkel Air Intake:

  Not Available
- Engine Block Heater:

  Not Available
- Speed Governor:

  No
- Other Engine:

  Not Available
- Compression Ratio:

  9.5:1
TRANSMISSION

add remove
- Transmission:

  Standard
- Transmission Type:

  Manual / Automatic Clutch
- Number Of Speeds:

  5
- Hi / Low Range:

  Yes
- Primary Drive (Rear Wheel):

  Shaft
- Primary Drive (Front Wheel):

  Shaft
- Reverse:

  Yes
- Adjustable Throttle:

  Not Available
- Other Transmission:

  Not Available
DRIVE LINE

add remove
- Driveline:

  Standard
- Driveline Type:

  Selectable 4X2 / 4X4
- Number Of Driveline Modes:

  2
- Rear Solid Axle:

  No
- Limited Slip Differential:

  Not Available
- Differential Lock:

  Standard
- Differential Lock Location:

  Rear
- Driveline Brand:

  TraxLok™
- Other Drive Line:

  Not Available
TECHNICAL SPECIFICATIONS

add remove
- Dimensions:

  Standard
- Length (mm):

  2667
- Width (in):

  50
- Width (mm):

  1270
- Height (in):

  71.2
- Height (mm):

  1808.5
- Wheelbase (in):

  73
- Wheelbase (mm):

  1854.2
- Turning Radius (ft):

  12.8
- Ground Clearance (in):

  8.5
- Ground Clearance (mm):

  215.9
- Weight:

  Standard
- Towing Capacity (lbs):

  1000
- Towing Capacity (kgs):

  453.6
- Capacities:

  Standard
- Fuel Capacity (gal):

  4.1
- Fuel Capacity (l):

  15.5
- Fuel Capacity Reserve (gal):

  1.1
- Fuel Capacity Reserve (l):

  4.2
- Performance:

  Standard
- Wet Weight (lbs):

  1058
- Wet Weight (kg):

  480
SUSPENSION

add remove
- Front Suspension:

  Standard
- Front Suspension Type:

  Independent Double Wishbone
- Front Travel (in):

  5.8
- Front Travel (mm):

  147.3
- Rear Suspension:

  Standard
- Rear Suspension Type:

  Independent Double Wishbone
- Rear Suspension Material:

  Steel
- Rear Travel (in):

  5.9
- Rear Travel (mm):

  149.9
- Number Rear Shock Absorbers:

  2
- Rear Stabilizer Bar:

  Yes
- Air Adjustable:

  No
- Center Suspension:

  Not Available
- Front Adjustable Fork Pre-Load:

  No
- Rear Adjustable Shock / Spring Pre-Load:

  Yes
- Other Suspension:

  Not Available
WHEELS & TIRES

add remove
- Wheels:

  Standard
- Wheels Composition:

  Steel
- Front Tire Diameter (in):

  24
- Rear Tire Diameter (in):

  24
- Wheel Weights:

  Not Available
- Tires:

  Standard
- Front Tire Width:

  8
- Front Wheel Diameter:

  12
- Rear Tire Width:

  10
- Rear Wheel Diameter:

  12
- Front Tire (Full Spec):

  Maxxis® 24 x 8-12
- Rear Tire (Full Spec):

  Maxxis® 24 x 10-12
- Tire Chains:

  Not Available
- Spare Tire:

  Not Available
- Tire Brand:

  Maxxis®
- Other Wheels & Tires:

  Not Available
BRAKES

add remove
- Brakes:

  Standard
- Front Brake Type:

  Dual Hydraulic Disc
- Front Brake Diameter (in):

  7.9
- Front Brake Diameter (mm):

  200
- Rear Brake Type:

  Hydraulic Disc
- Rear Brake Diameter (in):

  6.7
- Rear Brake Diameter (mm):

  170
- Anti-Lock Brakes:

  Not Available
- Parking Brake:

  Standard
- Engine Braking:

  Standard
- Regenerative Braking:

  Not Available
- Regenerative Deceleration:

  Not Available
- Linked Brake System Front to Rear:

  Not Available
- Other Brakes:

  Not Available
