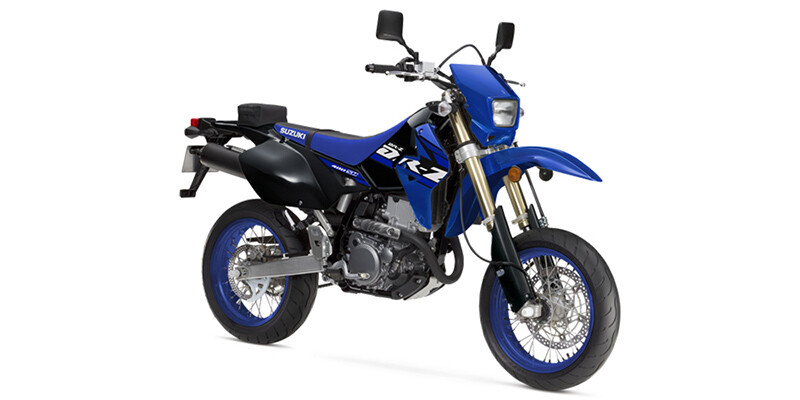

2024 DR-Z400SM

2024 DR-Z400SM

Description

Suzuki's 2024 SuperMoto DR-Z400SM is based on the proven DR-Z400S. So, it combines Supermotard style and features in a narrow, lightweight, street-legal package. This bike brings off-road soul and fun to paved roads. It is common to take the SuperMoto down a twisty forest road, around tight canyon corners, or through commuter traffic.

Its 398cc, liquid-cooled, four-stroke engine provides strong low-rpm torque and crisp throttle response for any of these occasions. Key differences between the DR-Z400SM and the DR-Z400S are the inverted front fork, wide spoke-style wheels, and 300mm diameter floating front brake rotor. The inverted fork contributes to less unsprung weight and improved overall handling, while the large brake and wider rims with high-grip tires offer an exhilarating sportbike experience.

Specifications

  • ENGINE
    add remove
    • Engine Type
      Single-Cylinder
    • Cylinders
      1
    • Engine Stroke
      4-Stroke
    • Cooling
      Liquid / Air
    • Valves
      4
    • Valves Per Cylinder
      4
    • Valve Configuration
      DOHC
    • Bore (in)
      3.54
    • Stroke (in)
      2.44
    • Displacement (cc)
      398
    • Carburetion Brand
      Mikuni
    • Fuel Injector
      No
    • Carburetor
      Yes
    • Number Of Carburetors
      1
    • Carburetion Type
      Carburetor
    • Bore x Stroke
      90.0 mm x 62.6 mm (3.54 in. x 2.44 in.)
    • Compression Ratio
      11.3:1
    • Fuel System
      Mikuni BSR36, single carburetor
    • Lubrication
      Semi-dry sump
    • Displacement
      398 cm3 (24.3 cu. in)
  • TRANSMISSION
    add remove
    • Transmission Type
      Manual
    • Number Of Speeds
      5
    • Primary Drive (Rear Wheel)
      Chain
    • Reverse
      No
    • Overdrive
      Yes
    • Gear Ratio (1)
      2.285
    • Gear Ratio (2)
      1.733
    • Gear Ratio (3)
      1.375
    • Gear Ratio (4)
      1.09
    • Gear Ratio (5)
      0.863
    • Final Drive Ratio
      2.733
  • TECHNICAL SPECIFICATIONS
    add remove
    • Length (in)
      87.6
    • Width (in)
      33.7
    • Height (in)
      47.2
    • Wheelbase (in)
      57.5
    • Ground Clearance (in)
      10.2
    • Fuel Capacity (gal)
      2.6
    • Turning Radius (ft)
      8.5
    • Wet Weight (lbs)
      321
    • Fuel Capacity Reserve (gal)
      0.6
  • SUSPENSION
    add remove
    • Front Suspension Type
      Inverted Fork
    • Front Adjustable Fork Pre-Load
      Yes
    • Front Adjustable Rebound Damping
      Yes
    • Front Central Suspension Strut
      No
    • Rear Suspension Type
      Twin Sided Swing Arm
    • Rear Adjustable Shock / Spring Pre-Load
      Yes
    • Rear Adjustable Rebound Damping
      Yes
    • Number Rear Shock Absorbers
      1
    • Rear Suspension Material
      Aluminum
    • Front Travel (in)
      10.2
    • Rear Travel (in)
      10.9
    • Front Suspension Brand Name
      Showa®
    • Steering Damper
      No
    • Air Adjustable
      No
  • WHEELS & TIRES
    add remove
    • Wheels Composition
      Aluminum
    • Chromed
      No
    • Tube / Tubeless
      Tubed
    • Front Tire (Full Spec)
      Dunlop® 120/70 R17 M/C 58H
    • Rear Tire (Full Spec)
      Dunlop® 140/70 R17 M/C 66H
    • Spare Tire
      Not Available
  • BRAKES
    add remove
    • Front Brake Type
      Hydraulic Disc
    • Rear Brake Type
      Hydraulic Disc
    • Anti-Lock Brakes
      Not Available
    • Linked Brake System Front to Rear
      Not Available
    • Front Brake Diameter (in)
      11.8
    • Rear Brake Diameter (in)
      9.5
  • Color options
    add remove
    • Grand Blue No. 2 & Solid Black
    • Solid Black
