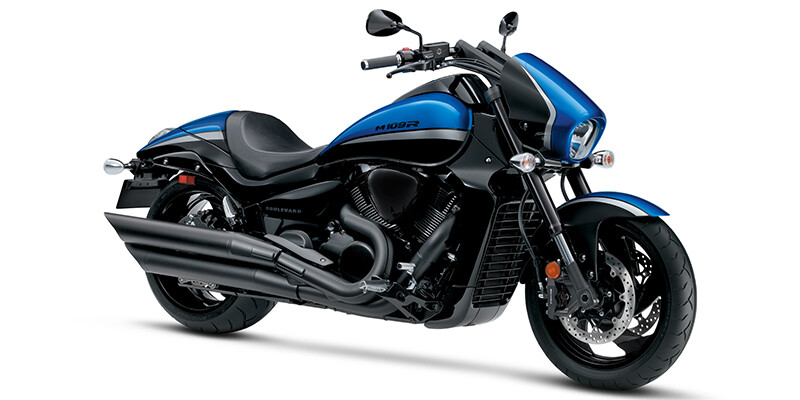

2023 Boulevard M109R B.O.S.S.

2023 Boulevard M109R B.O.S.S.

Description

The dark and muscular 2023 Suzuki M109R B.O.S.S. continues to be the performance cruiser other bikes wish they were. This M109R has a powerful V-twin engine with some of the largest pistons in the industry – a bike that will get your adrenaline flowing whenever you ride. This 109 cubic inch engine is wrapped with aggressive blacked-out styling that includes slash-cut mufflers, drag-style bars, a supplied solo seat cowl, and a distinctively shaped headlight nacelle that’s uniquely Suzuki. The deep red and black or bright blue and black paint schemes are so visually stunning that the M109R draws attention away from everything else on the road. This bike is not just about looks, as stout inverted forks, a hidden single-shock rear suspension, and an ideally designed saddle deliver responsive handling and an exceptionally comfortable ride. Hold on as performance never looked so good, or so dark.

Specifications

  • ENGINE
    add remove
    • Engine Type
      V Twin
    • Cylinders
      2
    • Engine Stroke
      4-Stroke
    • Cooling
      Liquid
    • Valves
      8
    • Valves Per Cylinder
      4
    • Valve Configuration
      DOHC
    • Bore (in)
      4.41
    • Stroke (in)
      3.56
    • Displacement (cc)
      1783
    • Fuel Injector
      Yes
    • Carburetor
      No
    • Carburetion Type
      Fuel Injected
    • Bore x Stroke
      112.0 mm x 90.5 mm (4.409 in. x 3.563 in.)
    • Compression Ratio
      10.5:1
    • Fuel System
      Suzuki fuel injection with SDTV
    • Lubrication
      Wet sump
  • TRANSMISSION
    add remove
    • Transmission Type
      Manual
    • Number Of Speeds
      5
    • Primary Drive (Rear Wheel)
      Shaft
    • Reverse
      No
    • Overdrive
      Yes
    • Gear Ratio (1)
      2.187
    • Gear Ratio (2)
      1.4
    • Gear Ratio (3)
      1.038
    • Gear Ratio (4)
      0.827
    • Gear Ratio (5)
      0.685
    • Final Drive Ratio
      2.823
    • Primary Drive (Engine / Transmission)
      Gear
  • TECHNICAL SPECIFICATIONS
    add remove
    • Length (in)
      96.5
    • Width (in)
      34.4
    • Height (in)
      44.5
    • Wheelbase (in)
      67.3
    • Ground Clearance (in)
      5.1
    • Fuel Capacity (gal)
      5.2
    • Turning Radius (ft)
      10.8
    • Wet Weight (lbs)
      764
  • SUSPENSION
    add remove
    • Front Suspension Type
      Inverted Fork
    • Front Suspension Size (in)
      1.8
    • Front Adjustable Fork Pre-Load
      No
    • Front Adjustable Rebound Damping
      No
    • Front Central Suspension Strut
      No
    • Rear Suspension Type
      Twin Sided Swing Arm
    • Rear Adjustable Shock / Spring Pre-Load
      Yes
    • Rear Adjustable Rebound Damping
      No
    • Number Rear Shock Absorbers
      1
    • Rear Suspension Material
      Aluminum
    • Front Travel (in)
      5.1
    • Rear Travel (in)
      4.6
    • Steering Damper
      No
    • Air Adjustable
      No
  • WHEELS & TIRES
    add remove
    • Wheels Composition
      Aluminum
    • Chromed
      No
    • Tube / Tubeless
      Tubeless
    • Front Tire (Full Spec)
      DunlopĀ® 130/70 R18 M/C 63V
    • Rear Tire (Full Spec)
      DunlopĀ® 240/40 R18 M/C 79V
    • Spare Tire
      Not Available
  • BRAKES
    add remove
    • Front Brake Type
      Dual Hydraulic Disc
    • Rear Brake Type
      Hydraulic Disc
    • Anti-Lock Brakes
      Not Available
    • Linked Brake System Front to Rear
      Not Available
    • Front Brake Diameter (in)
      12.2
    • Rear Brake Diameter (in)
      10.8
  • Color options
    add remove
    • Metallic Triton Blue & Glass Sparkle Black
    • Candy Daring Red / Glass Sparkle Black
