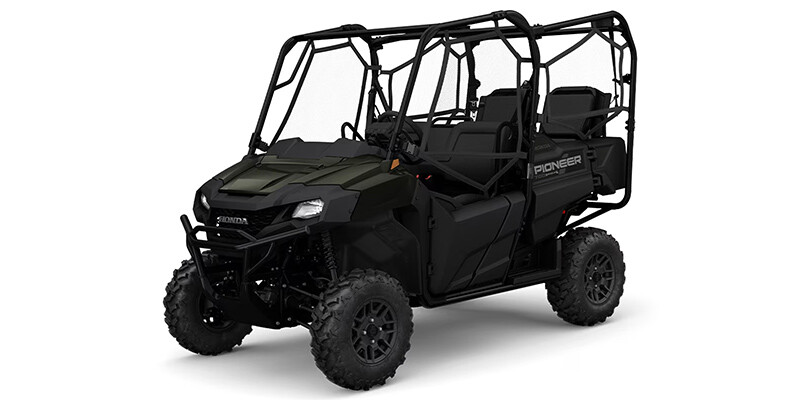

2026 Pioneer 700-4 Deluxe

Specifications

• Engine

  add remove
  • Engine Type
    Single-Cylinder
  • Engine
    Standard
  • Cylinders
    1
  • Engine Stroke
    4-Stroke
  • Cooling
    Liquid
  • Valves
    4
  • Valves Per Cylinder
    4
  • Valve Configuration
    OHV
  • Bore (mm)
    102
  • Bore (in)
    4.02
  • Stroke (mm)
    82.6
  • Stroke (in)
    3.25
  • Displacement (cc)
    675
  • Displacement (ci)
    41.2
  • Starter
    Electric
  • Fuel Type
    Gas
  • Fuel Requirements
    Regular
  • Carburetion
    Standard
  • Fuel Injector
    Yes
  • Fuel Injector Size (mm)
    40
  • Carburetor
    No
  • Carburetion Type
    Fuel Injected
  • Parental Controls
    Not Available
  • Snorkel Air Intake
    Not Available
  • Engine Block Heater
    Not Available
  • Number Of Carburetors
    0
  • Other Engine
    Not Available
  • Compression Ratio
    9.2:1
• TRANSMISSION

  add remove
  • Transmission
    Standard
  • Transmission Type
    Automatic
  • Number Of Speeds
    3
  • Hi / Low Range
    Yes
  • Primary Drive (Rear Wheel)
    Shaft
  • Primary Drive (Front Wheel)
    Shaft
  • Reverse
    Yes
  • Adjustable Throttle
    Not Available
  • Other Transmission
    Not Available
• DRIVE LINE

  add remove
  • Driveline
    Standard
  • Driveline Type
    Selectable 4X2 / 4X4
  • Number Of Driveline Modes
    3
  • Rear Solid Axle
    No
  • Limited Slip Differential
    Not Available
  • Differential Lock
    Standard
  • Differential Lock Location
    Front / Rear
  • Other Drive Line
    Not Available
• TECHNICAL SPECIFICATIONS

  add remove
  • Dimensions
    Standard
  • Length (mm)
    2915.9
  • Width (in)
    59.9
  • Width (mm)
    1521.5
  • Height (in)
    77.9
  • Height (mm)
    1978.7
  • Wheelbase (in)
    76.8
  • Wheelbase (mm)
    1950.7
  • Turning Radius (ft)
    14.8
  • Ground Clearance (in)
    10.7
  • Ground Clearance (mm)
    271.8
  • Weight
    Standard
  • Towing Capacity (lbs)
    1500
  • Towing Capacity (kgs)
    680.4
  • Capacities
    Standard
  • Fuel Capacity (gal)
    8.1
  • Fuel Capacity (l)
    30.7
  • Fuel Capacity Reserve (gal)
    1.5
  • Fuel Capacity Reserve (l)
    5.7
  • Performance
    Standard
  • Wet Weight (lbs)
    1446
  • Wet Weight (kg)
    656
• SUSPENSION

  add remove
  • Front Suspension
    Standard
  • Front Suspension Type
    Independent Double Wishbone
  • Front Travel (in)
    7.9
  • Front Travel (mm)
    200.7
  • Rear Suspension
    Standard
  • Rear Suspension Type
    Independent Double Wishbone
  • Rear Suspension Material
    Steel
  • Rear Travel (in)
    9.1
  • Rear Travel (mm)
    231.1
  • Number Rear Shock Absorbers
    2
  • Rear Stabilizer Bar
    Yes
  • Air Adjustable
    No
  • Center Suspension
    Not Available
  • Front Adjustable Fork Pre-Load
    No
  • Rear Adjustable Shock / Spring Pre-Load
    Yes
  • Other Suspension
    Not Available
• WHEELS & TIRES

  add remove
  • Wheels
    Standard
  • Wheels Composition
    Aluminum
  • Front Wheel Width (in)
    7
  • Rear Wheel Width (in)
    8
  • Front Tire Diameter (in)
    25
  • Rear Tire Diameter (in)
    25
  • Wheel Weights
    Not Available
  • Tires
    Standard
  • Front Tire Width
    8
  • Front Wheel Diameter
    12
  • Rear Tire Width
    10
  • Rear Wheel Diameter
    12
  • Front Tire (Full Spec)
    Kenda Mastodon AT: 25 x 8-12
  • Rear Tire (Full Spec)
    Kenda Mastodon AT: 25 x 10-12
  • Tire Chains
    Not Available
  • Spare Tire
    Not Available
  • Tire Brand
    Kenda
  • Other Wheels & Tires
    Not Available
• BRAKES

  add remove
  • Brakes
    Standard
  • Front Brake Type
    Dual Hydraulic Disc
  • Front Brake Diameter (in)
    7.9
  • Front Brake Diameter (mm)
    200
  • Rear Brake Type
    Hydraulic Disc
  • Rear Brake Diameter (in)
    6.7
  • Rear Brake Diameter (mm)
    170
  • Anti-Lock Brakes
    Not Available
  • Parking Brake
    Standard
  • Engine Braking
    Standard
  • Regenerative Braking
    Not Available
  • Regenerative Deceleration
    Not Available
  • Linked Brake System Front to Rear
    Not Available
  • Other Brakes
    Not Available
• Color options

  add remove
  • Black Forest Green
